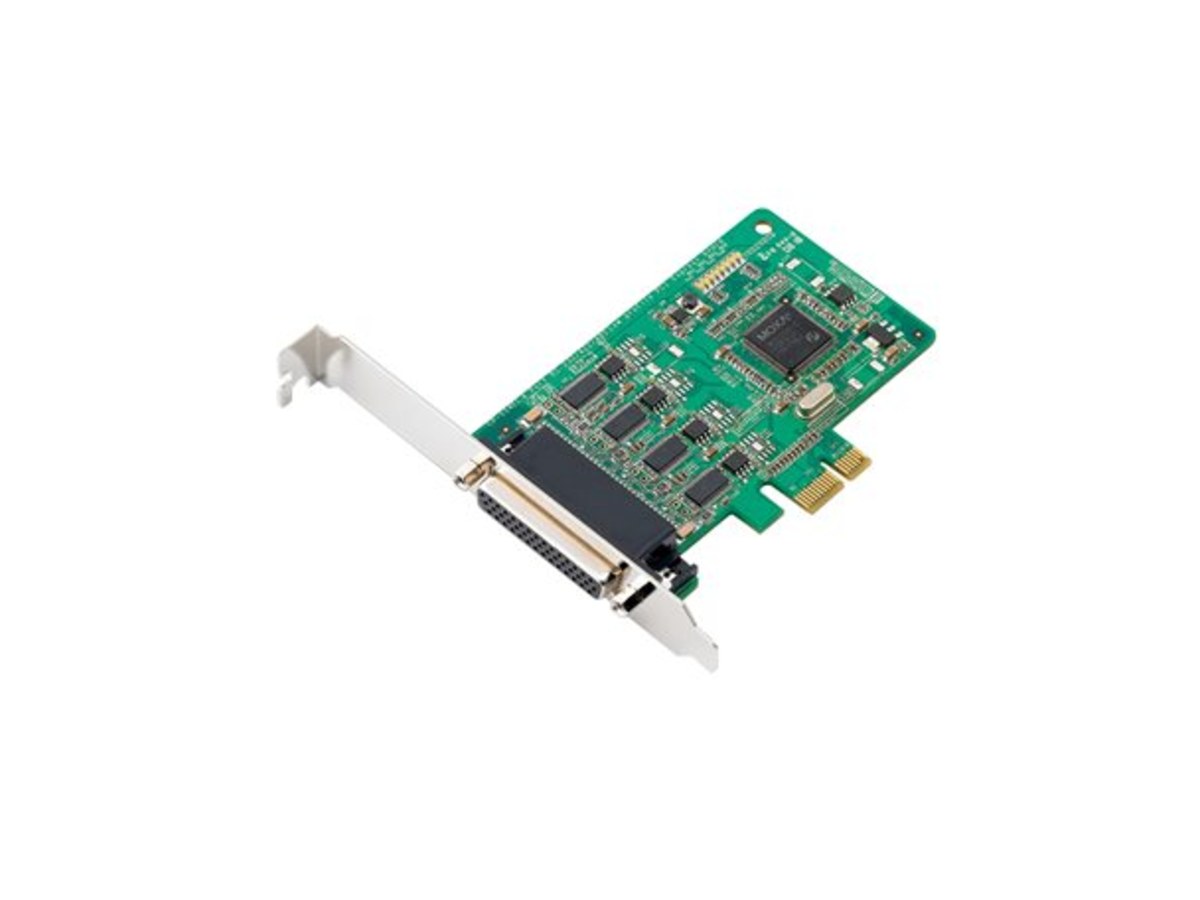

CP-114EL-DB9M

廠牌：MOXA 產品料號：8430.1149M.A82 連接埠數：4 Port PCIe Board, w/ DB9M Cable, RS-232/422/485, LowProfile 傳輸速率：; 堆疊/機構：; 擴充槽：; Mac Address：; 網管功能：; Comm. Controller：16C550C compatible Bus：PCI Express x1 Connector：DB44 female Number of Ports：4 Serial Standards：RS-232/422/485 Max. No. of Boards per PC：4 Electrical Isolation：2 kV (CP-114EL-I only) Baudrate：50 bps to 921.6 kbps Data Bits：5, 6, 7, 8 Stop Bits：1, 1.5, 2 Parity：None, Even, Odd, Space, Mark Flow Control：RTS/CTS, XON/XOFF RS-232：TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422：TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-4w：TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-2w：Data+(B), Data-(A), GND Dimensions：CP-114EL: 67.21 x 103 mm (2.65 x 4.06 in) Windows：Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS Linux：Linux 2.4.x, 2.6.x, 3.x Unix-like Systems：QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 Operating Temperature：0 to 55°C (32 to 131°F) Storage Temperature：-20 to 85°C (-4 to 185°F) Ambient Relative Humidity：5 to 95% (non-condensing) EMC：EN 55032/24 EMI：CISPR 32, FCC Part 15B Class B EMS：IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV Time：CP-114EL: 2,347,197 hrs Standard：Telcordia (Bellcore) TR/SR Input Current：CP-114EL: 835 mA @ 3.3 VDC Warranty Period：5 years Details：See www.moxa.com/warranty CP-114EL-DB9M 4-port RS-232/422/485 low-profile PCI Express x1 serial board (includes DB9 male cable) • Hardware • Serial Interface • Serial Line Protection • Performance • Serial Communication Parameters • Serial Signals • Physical Characteristics CP-114EL-I: 67.21 x 135 mm (2.65 x 5.31 in) • Driver Support Note: Please refer to Moxa’s website for the latest driver support information. • Environmental Limits • Standards and Certifications IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000 • MTBF (mean time between failures) CP-114EL-I: 603,671 hrs • Power Requirements CP-114EL-I: 1,170 mA @ 3.3 VDC • Warranty 商品規格：4 Port PCIe Board, w / DB9M Cable, RS-232 / 422 / 485, LowProfile / ; / ; / ; / ; / ; （本站售價已含營業稅；代理商報價為未稅）
