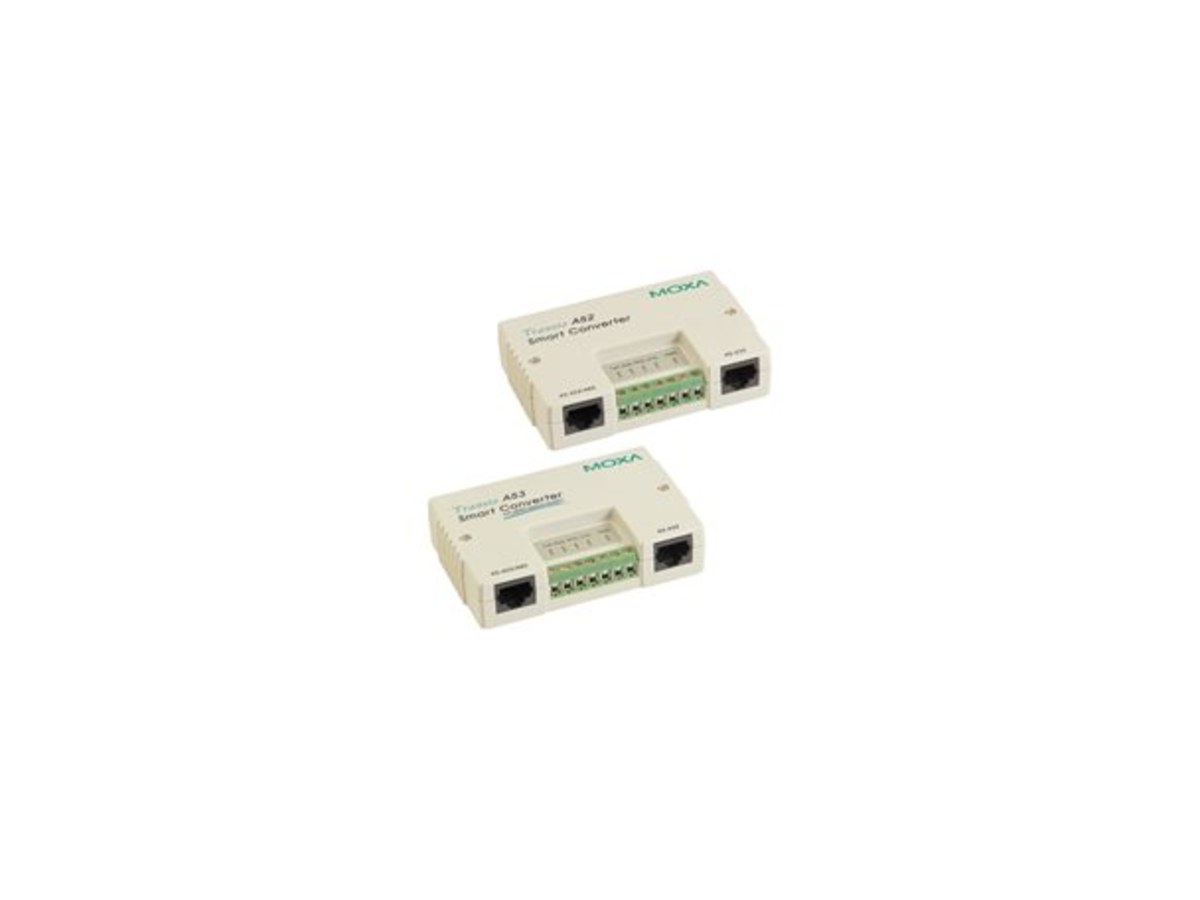

A52-DB9F w/ Adapter

廠牌：MOXA 產品料號：8430.D89F0.A82 連接埠數：RS-232轉RS-422/485智慧型雙向轉換器 傳輸速率：; 堆疊/機構：; 擴充槽：; Mac Address：; 網管功能：; RS-232 Signals：Tx, Rx, DTR, DSR, RTS, CTS, DCD, GND (RJ45) RS-422/485 Signals：Supports RS-422, 2-wire RS-485 (DIP switch selectable) Optical Isolation Protection：2 KV (A53), power/signal Power EFT/Surge Protecction：25 KV ESD surge protection RS-485 Data Direction Control：ADDC™ Baudrate：50 bps to 230.4 Kbps Housing：ABS Weight：85 ± 5 g Dimensions：90 x 60 x 21 mm Operating Temperature：0 to 55°C (32 to 131°F) Operating Humidity：5 to 95% RH Storage Temperature：-20 to 75°C (-4 to 167°F) Input Voltage：9 to 30 VDC, 350 mA Power Consumption：A52: 170 mA @ 9 V Over Current Protection：Protection against 2 signals shorted together CE：Class A FCC：Class A Warranty Period：5 years Details：See https://www.moxa.com/support/warranty.htm A52-DB9F W • Serial Communication Supports 4-wire RS-422, up to 10 nodes, 1.2 km with RTS, CTS Supports 2-wire RS-485, up to 32 nodes, 1.2 km • RS-422/485 Side • Serial Transmission • Physical Characteristics • Environmental Limits • Power Requirements A53: 285 mA @ 9 V • Regulatory Approvals • Warranty 商品規格：RS-232轉RS-422 / 485智慧型雙向轉換器 / ; / ; / ; / ; / ; （本站售價已含營業稅；代理商報價為未稅）
