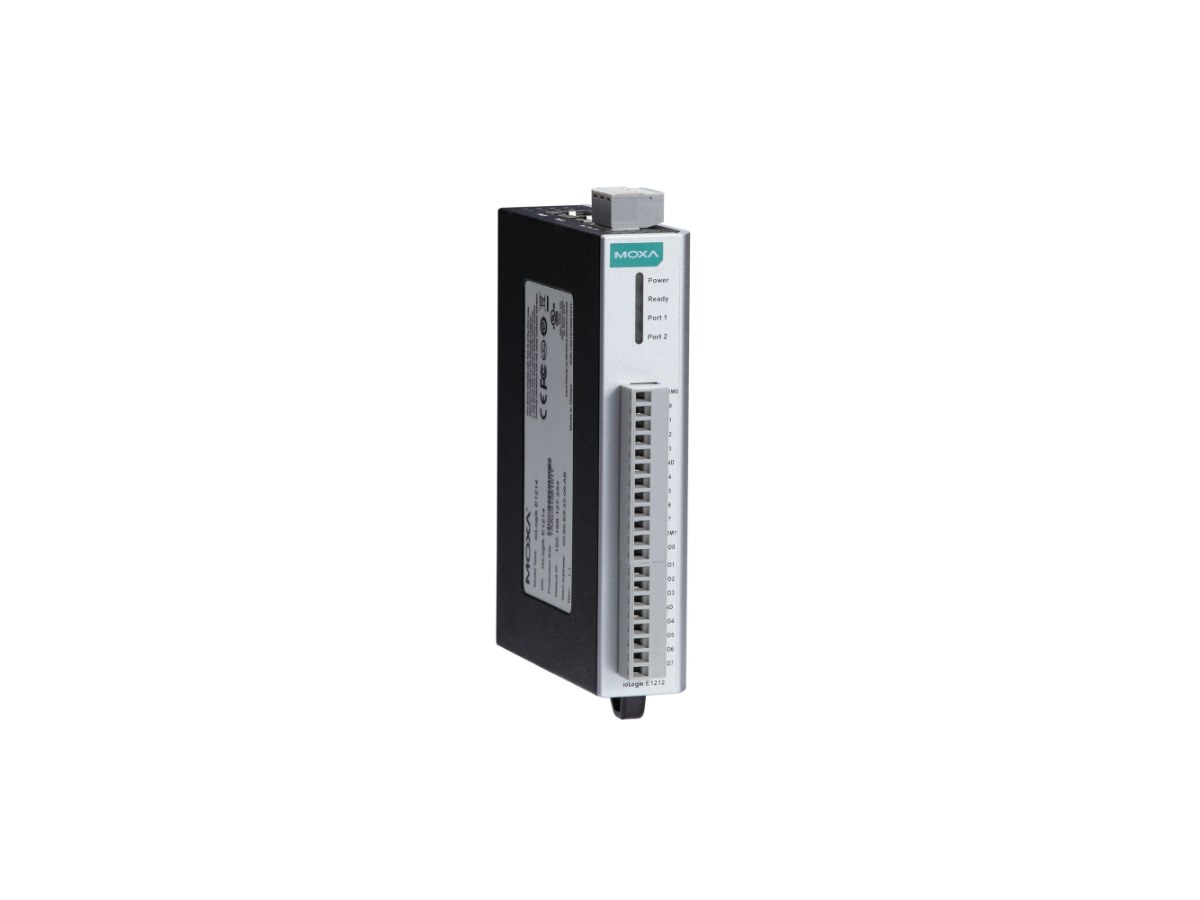

Moxa ioLogik E1210

廠牌：MOXA 產品料號：8431.E1210.A82 連接埠數：乙太網路遠端I/O，內建2組乙太網路交換埠及16 DI 傳輸速率：; 堆疊/機構：; 擴充槽：; Mac Address：; 網管功能：N Digital Inputs：16 channels Isolation：3k VDC or 2k Vrms Sensor Type：Wet Contact (NPN or PNP), Dry Contact I/O Mode：DI or Event Counter Dry Contact：• On: short to GND Wet Contact (DI to COM)：• On: 10 to 30 VDC Common Type：8 points per COM Counter Frequency：250 Hz Digital Filtering Time Interval：Software configurable Input Voltage：12 to 36 VDC Input Current：110 mA @ 24 VDC Time：671,345 hrs Standard：Telcordia SR332 Ethernet：2 switched 10/100 Mbps RJ45 ports Protection：1.5 kV magnetic isolation Protocols：Modbus/TCP (Slave), EtherNet/IP*, SNMPv1/v2c, RESTful API, TCP/IP, UDP, DHCP, BOOTP, HTTP Wiring：I/O cable max. 14 AWG Dimensions：27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) Weight：Under 200 g (0.44 lb) Mounting：DIN rail or wall Operating Temperature：Standard Models: -10 to 60°C (14 to 140°F) Storage Temperature：-40 to 85°C (-40 to 185°F) Ambient Relative Humidity：5 to 95% (non-condensing) Shock：IEC 60068-2-27 Vibration：IEC 60068-2-6 Altitude：Up to 2000 m Note：Please contact Moxa if you require products guaranteed to function properly at higher altitudes. Safety：UL 508 EMC：EN 55032, EN 55024, EN 61000-3-2/3-3, EN 61000-6-2/6-4 EMI：CISPR 32, FCC Part 15B Class A EMS：IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV Hazardous Location：Class 1 Division 2, ATEX Zone 2 Green Product：RoHS, CRoHS, WEEE Note：Please check Moxa’s website for the most up-to-date certification status. Warranty Period：5 years Details：See www.moxa.com/warranty Note：Because of the limited lifetime of power relays, products that use this component are covered by a 2-year warranty. ioLogik E1210 乙太網路遠端I/O，內建2組乙太網路交換埠及16 DI 內建2埠乙太網路交換器，可供串接使用(daisy-chain) 免費支援Moxa的推進式Active OPC Server Lite 可無縫連結任何 SCADA 系統 節省80%網路頻寬 七倍快速的 I/O 反應速度 使用者定義的Modbus/TCP位址表 MXIO 程式庫，支援 Windows 、WinCE VB/VC.NET 和Linux C API 可透過 Web 配置，支援設定檔匯入和匯出功能 • ioLogik E1210 Specifications • Inputs and Outputs • Digital Input • Off: open • Off: 0 to 3 VDC • Power Requirements • MTBF (mean time between failures) • Common Specifications *Requires online registration at https://www.moxa.com/Event/DAC/2016/Smart_EIP_IO/index.htm (available free of charge) • Physical Characteristics • Environmental Limits Wide Temp. Models: -40 to 75°C (-40 to 167°F) • Standards and Certifications IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 • Warranty 商品規格：乙太網路遠端I / O，內建2組乙太網路交換埠及16 DI / ; / ; / ; / ; / N （本站售價已含營業稅；代理商報價為未稅）
