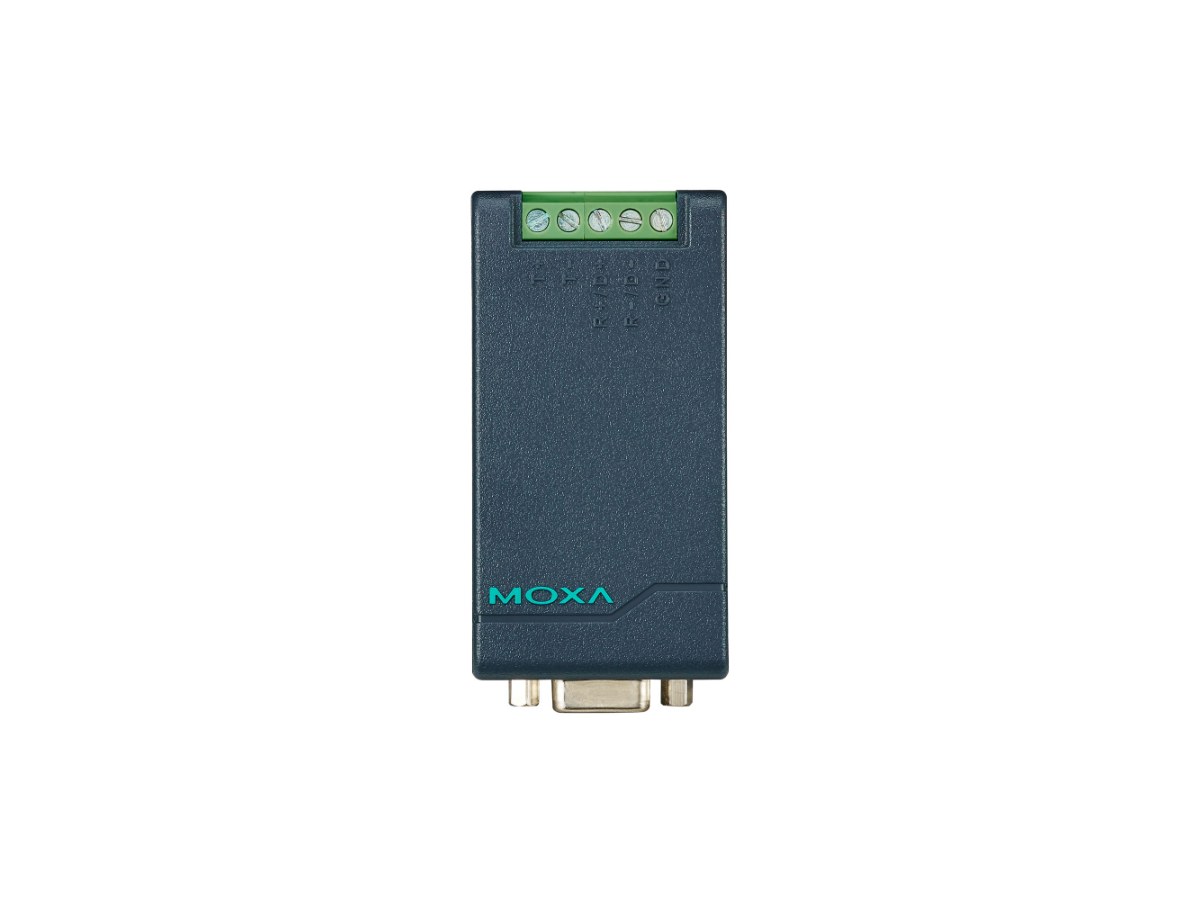

Moxa TCC-80

廠牌：MOXA 產品料號：8461.CC080.A82 轉換形式：無需外部電源 傳輸速率：; 電源：; Connector：DB9 female Signals：RS-232: TxD, RxD, GND Connector：Terminal Block or DB9 male Signals：(interface selected by DIP switch) RS-485 Data Direction Control：ADDC® (Automatic Data Direction Control) Baudrate：50 bps to 115.2 kbps Optical Isolation：2.5 kV rms for 1 minute (TCC-80I only) Housing：ABS + PC Dimensions：TCC-80/80I: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in) Weight：50 g (0.11 lb) Operating Temperature：0 to 60°C (32 to 140°F) Storage Temperature：-20 to 75°C (-4 to 167°F) Ambient Relative Humidity：5 to 95% (non-condensing) Source of Input Power：RS-232 port (TxD, RTS, DTR) or power input jack Input Voltage：5 to 12 VDC Input Current：TCC-80: 10 mA @ 5 VDC (with termination disabled) Safety：UL 60950-1 EMC：EN 55032/24 EMI：CISPR 32, FCC Part 15B Class B EMS：EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV Green Product：RoHS, CRoHS, WEEE Time：2,781,161 hrs Standard：Telcordia (Bellcore), GB Warranty Period：5 years Details：See www.moxa.com/warranty 串列埠供電 RS-232 轉 RS-422/485 轉接器，內建光電隔離保護 支援外接電源(但非必要) 高速傳輸，高達 115.2 Kbps 轉換 RS-422，包括 2 線式與 4 線式 RS-485 RS-485 自動數據流向控制 15 KV 串列 ESD 靜電保護 內建 120-ohm 終端電阻 2.5 KV 隔離保護 ( 僅TCC-80I 提供) 擁有專利的 LED 連接埠電源指示燈 • RS-232 Side (Loop-back wiring: RTS to CTS, DTR to DSR and DCD) • RS-422/485 Side RS-422: TxD+, TxD-, RxD+, RxD-, GND RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND RS-485-2w: Data+, Data-, GND • Serial Communication • Physical Characteristics TCC-80-DB9/80I-DB9: 42 x 91 x 23.6 mm (1.65 x 3.58 x 0.93 in) • Environmental Limits • Power Requirements TCC-80I: 20 mA @ 5 VDC (with termination disabled) • Standards and Certifications EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 1 kV EN 61000-4-5 (Surge): Power: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) • MTBF (mean time between failures) • Warranty 商品規格：無需外部電源 / ; / ; / null / null / null （本站售價已含營業稅；代理商報價為未稅）
