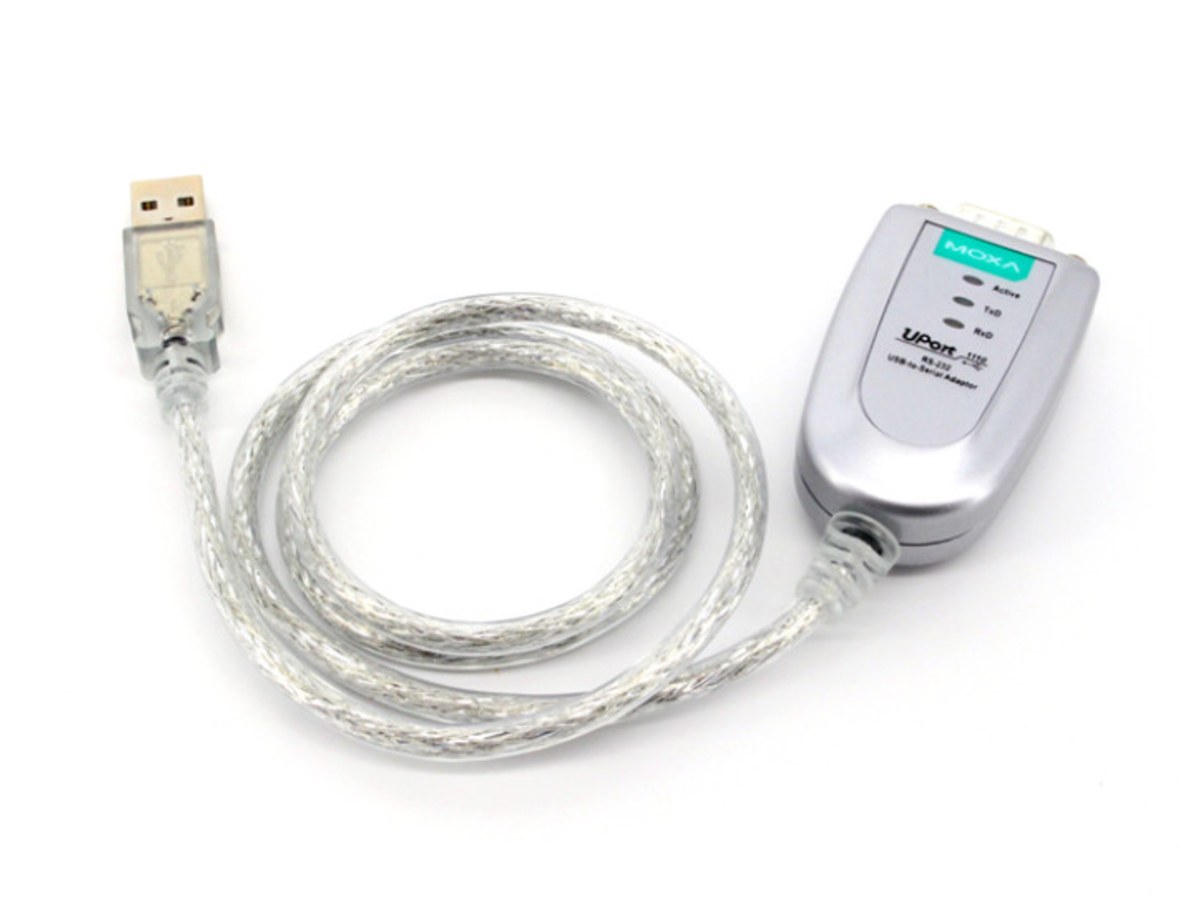

MOXA UPort 1110 / 1埠USB轉RS232串列轉換器

廠牌：MOXA 產品料號：8461.U1110.A82 轉換形式：筆記型電腦最佳配件 傳輸速率：與 USB 2.0 完全相容可達 12 Mbps/ 電源：靜電保護 Compliance：USB 1.0/1.1 compliant, USB 2.0 compatible Connector：USB Type A Speed：12 Mbps (Full-Speed USB) Number of Ports：1 Serial Standards：RS-232 Connector：DB9 male Electrical Isolation：2 kV (UPort 1130I and 1150I) Baudrate：50 bps to 921.6 kbps Data Bits：5, 6, 7, 8 Stop Bits：1, 1.5, 2 Parity：None, Even, Odd, Space, Mark Flow Control：RTS/CTS, XON/XOFF FIFO：64 bytes RS-232：TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422：TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-4w：TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-2w：Data+(B), Data-(A), GND RS-485 Data Direction：ADDC® (Automatic Data Direction Control) Windows Real COM Drivers：Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0 Linux Real TTY Drivers：Linux 2.4.x, 2.6.x, 3.x Housing：ABS + PC Weight：Product only: 65 g (0.14 lb) Dimensions：37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in) Operating Temperature：0 to 55°C (32 to 131°F) Storage Temperature：-20 to 70°C (-4 to 158°F) Ambient Relative Humidity：5 to 95% (non-condensing) EMC：EN 55032/24 EMI：CISPR 32, FCC Part 15B Class B EMS：IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV Input Voltage：5 VDC Input Current：30 mA @ 5 VDC Time：1,949,025 hrs Standard：Telcordia (Bellcore), GB Warranty Period：5 years Details：See www.moxa.com/warranty 1埠USB轉RS-232串列轉接器 與 USB 2.0 完全相容 USB 資料傳輸率可達 12 Mbps 超高速資料傳輸，最高傳輸率達 921.6 Kbps 支援 Windows (含 Vista), WinCE 5.0和Linux驅動程式 RS-232 使用 DB9 公接頭 指示 USB 與 TxD/RxD 活動傳輸之 LED 燈號 所有串列埠皆具備 15 KV ESD 靜電保護 • USB Interface • Serial Interface • Performance • Serial Communication Parameters • Serial Signals • Operating Systems Note: Please refer to Moxa’s website for the latest driver support information. • Physical Characteristics Packaged: 200 g (0.44 lb) • Environmental Limits • Standards and Certifications IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF • Power Requirements • MTBF (mean time between failures) • Warranty 商品規格：筆記型電腦最佳配件 / 與 USB 2.0 完全相容可達 12 Mbps / 靜電保護 / null / null / null （本站售價已含營業稅；代理商報價為未稅）
